LT8311EX USB2.0信号放大延长USB转发器龙迅 Lontium
1. General Description

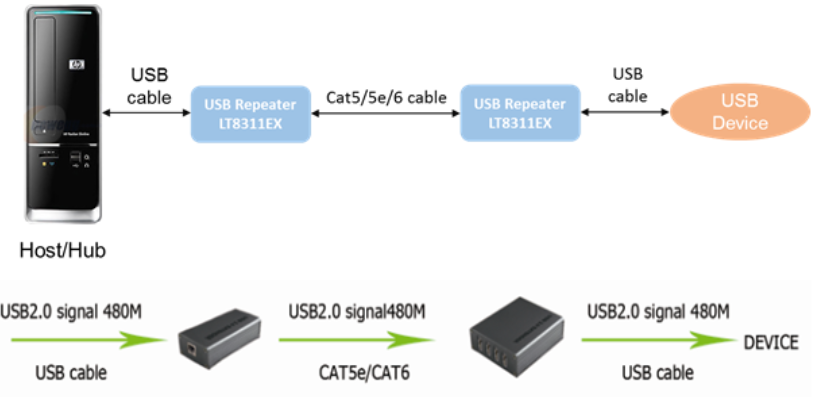

LT8311EX is a low cost high performance USB repeater that supports signal transferring extension over cat5/5e/6 cable, compliant with USB2.0 specification. The extension length can be up to 120 meters over CAT6 cable. It eliminates the 5 meters distance limitation of USB2.0 specification. There are four lines used for signal transferring extension between two LT8311EX chips. Internal equalization settings can be changed through I2C interface for different extension lengths.
2. Features
• Extension length up to 120 meters
• Support USB 2.0 high-speed and USB 1.1(low-speed and full-speed)
• Support hot plugg
• Internal pull-up and pull-down resistor
• Pin control and I2C control mode for equalization
• Single 3.3V power supply
• 20-pin TSSOP RoHS package
• -40 to 85℃ operating temperature range
• ESD:HBM to 2KV
3.APPLICATIONS
• Desktop and laptop computers, docking stations
• Servers and workstations
• Data storage systems
九黎科技可提供全套开发资料：规格书，电路图，DEMO,在线与原厂技术支持沟通推荐更适合客户的解决方案等等，能满足系统厂商不同的设计要求，欢迎广大客户来电咨询，可提供样品和含税17%！
代理产品，每一片芯片都有原厂来货证明，杜绝一切假货后顾之忧，让您的用料更加放心可靠！
如需获取更多产品资料PDF,电路图或样品，技术疑问（原厂技术支持）欢迎随时与我们取得联系！！
