LT8668SXK8-D,单双端口LVDS/MIPI/HDMI互转,带缩放,支持8K以上分辨率
1. 一般的描述
LT8668SXK8-D可以配置为在HDMI2.1标准下工作,最大数据速率为8Gbps。
LT8668SXK8-D还可以配置为在DP1.4a下工作,最高可达8.1Gbps的数据速率。
对于LVDS输出,LT8668SXK8-D可配置为单端口、双端口或四端口LVDS,具有1个高速时钟通道和3~5个高速数据通道,每通道的最大工作速率为1.2Gbps,可支持总带宽高达24Gbps。LT8668SXK8-D支持灵活的视频数据映射路径,用于2D和并排3D应用程序。
对于MIPI输出,LT8668SXK8-D具有可配置的单端口或双端口或四端口MIPI®DSI/CSI,具有1个高速时钟通道和1~4个高速数据通道,使用D-PHY每通道运行的最大2.5Gbps,可支持高达40Gbps的总带宽为4个端口。还支持5.7Gbps每车道与C-PHY,可以支持总带宽高达68.4Gbps的四个端口。
对于eDP1.4输出,它由8个数据通道组成,支持RBR (1.62Gbps)、HBR (2.7Gbps)和HBR2 (5.4Gbps)链路速度。内置的可选SSC功能减少了EMI对EMI相关系统应用的影响。
eDPx输出由8个数据通道组成,每通道最多运行3Gbps,可以支持4K@60Hz。
对于视频处理,内置LPDDR控制器,带宽高达3733Mbps,支持2Gb x16 SDRAM组织。
有两个数字音频输出接口I2S和SPDIF。I2S接口支持8-ch LPCM, SPDIF接口支持2-ch LPCM或压缩音频,均支持最大192khz采样率。
该设备能够通过集成的微处理器实现自动操作,该微处理器使用嵌入式SPI闪存进行固件存储。系统控制也可通过配置I2C从接口。
LT8668SXK8-D采用先进的CMOS工艺,在12mmx12mm的BGA288封装中实现
2. 特性
•HDMI2.1接收机
•USB c型
•DP1.4a接收机
•HDMI2.1发射机
•DP1.4a发射机
•四端口LVDS发射器
•四端口MIPI®DSI/CSI发射器
•eDP1.4 / eDPx发射机
•数字音频输出
•视频过程
3.应用程序
•显示系统在主板,监视器
•用于pc和嵌入式应用的显示系统

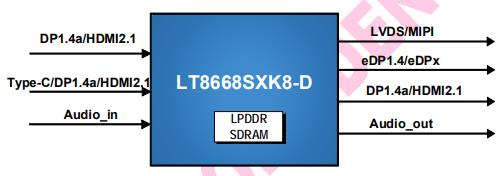

1. General Description
LT8668SXK8-D can be configured to work under HDMI2.1 standard with maximum 8Gbps data rate.
LT8668SXK8-D also can be configured to work under DP1.4a with up to 8.1Gbps data rate.
For LVDS output, LT8668SXK8-D can be configured as single, dual or quad-port LVDS with 1 high-speed clock lane, and 3~5 high-speed data lanes, operating at maximum 1.2Gbps per lane, which can support a total bandwidth of up to 24Gbps. LT8668SXK8-D supports flexible video data mapping path for 2D and side by side 3D applications.
For MIPI output, LT8668SXK8-D features configurable single-port or dual-port or quad-port MIPI®DSI/CSI with 1 high-speed clock lane and 1~4 high-speed data lanes operating at maximum 2.5Gbps per lane with D-PHY, which can support a total bandwidth of up to 40Gbps for four port. Also support 5.7Gbps per lane with C-PHY, which can support a total bandwidth of up to 68.4Gbps for four port.
For eDP1.4 output, it consists of 8 data lanes, supporting RBR (1.62Gbps), HBR (2.7Gbps) and HBR2 (5.4Gbps) link speeds. The build-in optional SSC function reduces EMI effect on EMI-concerned system application.
For eDPx output, it consists of 8 data lanes, with operating at maximum 3Gbps per lane, can support 4K@60Hz.
For video process, LPDDR controller is built-in and bandwidth up to 3733Mbps, support 2Gb x16 SDRAM organization.
Two digital audio output interfaces are available I2S and SPDIF. The I2S interface supports 8-ch LPCM and the SPDIF interface supports 2-ch LPCM or compressed audio, both at maximum 192 KHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.
LT8668SXK8-D is fabricated in advanced CMOS process and implemented in 12mmx12mm BGA288 package.2
2. Features
• HDMI2.1 Receiver
• USB Type-C
• DP1.4a Receiver
• HDMI2.1 Transmitter
• DP1.4a Transmitter
• Four-Port LVDS Transmitter
• Four-Port MIPI® DSI/CSI Transmitter
• eDP1.4/eDPx Transmitter
• Digital Audio Output
• Video Process
3. Applications
• Display System on Motherboard, Monitor
• Display System for PCs and embedded applications Display
