LT8711V -Type-C/DP to VGA with audio+U3+PD2.0

作者：网站管理员　来源：本站原创　日期：2021/7/5 18:12:52　点击：552　属于：行业动态

1. General Description

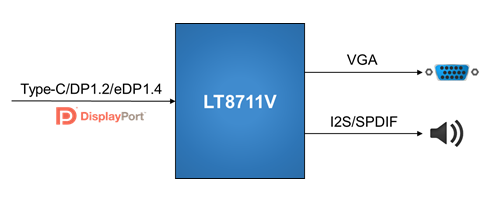

The LT8711V is a high performance Type-C/DP1.2 to VGA converter, designed to connect a USB Type-C source or a DP1.2 source to a VGA sink.The LT8711V integrates a DP1.2 compliant receiver, and a high-speed triple-channel video DAC. Also, two CC controllers are included for CC communication to implement DP Alt Mode and power delivery function, one for upstream Type-C port and another for downstream port.
Two digital audio output interfaces are available, I2S and SPDIF. The I2S interface supports 2-ch LPCM and the SPDIF interface supports 8-ch LPCM or compressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the use of a dedicated configuration I2C slave interface.
LT8711V also support EDID buffer, DP/eDP input detection and determine to enter into power saving mode automatically. When the receiver of LT8711V locks the input signal, the MCU can read the recovered timing parameters by the MSA registers to match the ASSR. The DPCD registers are accessible via system I2C when debugging the full link training. Once the fast link training used, system time will save at least 400ms.

2. Features

• USB Type-C
• DP1.2 Receiver
• Triple-Channel Video DAC
• Digital Audio input/Output
• Miscellaneous

3. Applications

• Docking station
• Dongle
