LT86102SXE- HDMI 1.4/2.0&DVI 1.0 specifications compliant

作者：网站管理员　来源：本站原创　日期：2021/4/3 16:57:01　点击：603　属于：代理品牌

LT86102SXE

•符合HDMI 1.4 / 2.0＆DVI 1.0规范封装PQFP 80

1.说明

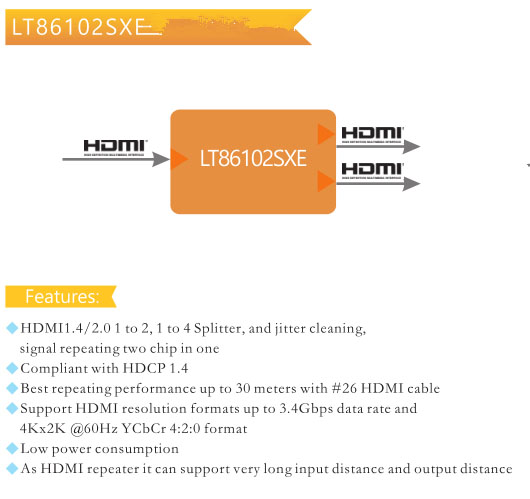

LT86102SXE是Lontium的第四代2端口HDMI / DVI分配器，可以将一个HDMI / DVI信号转发到2个HDMI / DVI信号集，最多支持2个不同的HDMI / DVI接收/显示端子。它基于ClearEdgeTM技术，每个通道支持高达3.4Gbps的数据速率，符合HDMI 1.4 / 2.0＆DVI 1.0规范。

2.功能

•支持高达3.4Gbps数据速率的3D视频格式和4Kx2K扩展分辨率格式，以及60Hz YCbCr 4：2：0格式的4Kx2K

•自适应均衡和去加重以补偿长电缆损耗

•ODT和校准

•符合HDCP 1.4规范的集成HDCP转发器引擎

•完全由硬件控制或可选的软件控制的HDCP操作

•预编程的HDCP密钥集或外部EEPROM存储的密钥集

•集成CEC控制器

•集成EDID影子RAM和嵌入式EDID

•耐5V的DDC接口

•1个HDMI / DVI输入端口，最多2个HDMI / DVI输出端口

3.应用

•多显示器/电视支持

•HDMI / DVI信号分离/重复

1. Description

LT86102SXE is Lontium’s 4rd generation 2-port HDMI/DVI splitter which can repeat one HDMI/DVI signal to 2 HDMI/DVI signal sets, support up to 2 different HDMI/DVI receiving/display terminals. Based on ClearEdgeTM Technology, it supports up to 3.4Gbps data rate per channel, compliant with the HDMI 1.4/2.0&DVI 1.0 specifications.

2. Features

• HDMI 1.4/2.0&DVI 1.0 specifications compliant
• Support 3D video formats and 4Kx2K extended resolution formats up to 3.4Gbps data rate and 4Kx2K @60Hz YCbCr 4:2:0 format
• Adaptive equalization and de-emphasis to compensate long cable losses
• ODTs and calibration
• Integrated HDCP repeater engine compliant with HDCP 1.4 specification
• Fully hardware-controlled or optional software-controlled HDCP operations
• Pre-programmed HDCP key sets or external EEPROM stored key sets
• Integrated CEC controller
• Integrated EDID shadow RAM and embedded EDID
• 5V-tolerant DDC interfaces
• 1 HDMI/DVI input port, up to 2 HDMI/DVI output ports
• Unlimited cascading for more output ports or signal repeating
• 80-pin PQFP package

3.Applications
• Multiple display/TV support
• HDMI/DVI signal splitting/repeating
