LT6711A-USB Type-C Charging Port,HDMI2.0 Receiver
LT6711AHDMI2.0到eDP / DP1.2支持4K 60Hz
LT6711A 制造商：Lontium
LT6711A 封装：QFN64 7.5*7.5
LT6711A 最小包装:2600/包（可拆）
1.描述
LT6711是一款经过深度优化的HDMI重新驱动器IC，可通过执行电缆或电路板走线损耗补偿来增强TMDS信号质量。LT6711可配置为在HDMI1.4b下工作，数据速率高达3.4Gb / s，HDMI2.0标准，最高6Gb / s数据速率，可实现4Kx2K 60Hz或1080P的最高分辨率，刷新率更高。
LT6711的输入接收器具有多级可编程线性均衡器，可通过符号间干扰（ISI）支持最大25dB的损耗补偿。输出发送器通过多级可编程输出摆幅和高达6dB的去加重来重新驱动接收信号。
还包括内置DDC拦截功能，与时钟通道上的精确频率检测协同工作，以自动设置重新驱动器参数。
LT6711内部集成了一个8位OCM和SPI闪存（堆叠芯片）来运行程序。LT6711还支持在线软件升级。
LT6711采用先进的CMOS工艺制造，采用小尺寸5mmx5mm BGA81（LT6711B）和7.5mmx7.5mm QFN64（LT6711A）封装。该封装符合RoHS标准，额定工作温度范围为-40°C至+ 85°C。
2.特点
•HDMI2.0接收器
•DP1.2发射器
•全功能USB Type-C
•USB Type-C充电端口
•其他
3.应用
•移动系统，VR / AR
•蜂窝手机，PAD /平板电脑
•数码摄像机
•数码相机
1. Description
LT6711A is a deeply-optimized HDMI re-driver IC that enhances TMDS signal quality by performing cable or board trace loss compensation. LT6711A can be configured to work under HDMI1.4b with up to 3.4Gb/s data rate or HDMI2.0 standard with maximum 6Gb/s data rate to allow for the highest resolutions of 4Kx2K 60Hz or 1080P with higher refresh rates.
The input receiver of LT6711A features a multi-level programmable linear equalizer that can support maximum 25dB loss compensation due to Inter-Symbol Interference (ISI). The output transmitter re-drives the received signal with multi-level programmable output swing and up to 6dB de-emphasis.
The Build-in DDC interception function, co-working with an accurate frequency detect on clock channel is also included to automatically setup re-driver parameters.
LT6711A internally integrates an 8-bit OCM and SPI flash memory (stacked die) to run program. Online software upgrade is also supported for LT6711A.
LT6711A is fabricated in advanced CMOS process and implemented in a small outline 5mmx5mm BGA81 (LT6711B) and 7.5mmx7.5mm QFN64 (LT6711A) package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
2. Features
• HDMI2.0 Receiver
• DP1.2 Transmitter
• Full-Featured USB Type-C
• USB Type-C Charging Port
• Miscellaneous

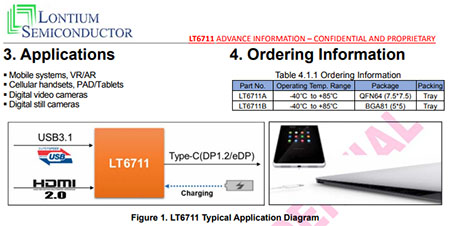

3. Applications
• Mobile systems, VR/AR
• Cellular handsets, PAD/Tablets
• Digital video cameras
• Digital still cameras
我公司可提供全套开发资料：规格书，电路图，DEMO,在线与原厂技术支持沟通推荐更适合客户的解决方案等等，能满足系统厂商不同的设计要求，欢迎广大客户来电咨询，可提供样品和含税13%！代理产品，每一片芯片都有原厂来货证明，杜绝一切假货后顾之忧，让您的用料更加放心可靠！
如需获取更多产品资料PDF,电路图或样品，技术疑问（原厂技术支持）欢迎随时与我们取得联系！！
深圳市九黎科技有限公司：www.jlkj688.com
联系电话：0755-26980129/18771735437(微信同号)
联系人：郑小姐 传真：0755-82737072 QQ:313620595
