LT6711A-HDMI2.0 Receiver • • Full-Featured USB Type-C,USB Type-C Charging Port
作者:网站管理员 来源:本站原创 日期:2021/3/29 19:11:18 点击:1510 属于:行业动态
1. Description
LT6711A is a deeply-optimized HDMI re-driver IC that enhances TMDS signal quality by performing cable or board trace loss compensation. LT6711A can be configured to work under HDMI1.4b with up to 3.4Gb/s data rate or HDMI2.0 standard with maximum 6Gb/s data rate to allow for the highest resolutions of 4Kx2K 60Hz or 1080P with higher refresh rates.
The input receiver of LT6711A features a multi-level programmable linear equalizer that can support maximum 25dB loss compensation due to Inter-Symbol Interference (ISI). The output transmitter re-drives the received signal with multi-level programmable output swing and up to 6dB de-emphasis.
The Build-in DDC interception function, co-working with an accurate frequency detect on clock channel is also included to automatically setup re-driver parameters.
LT6711A internally integrates an 8-bit OCM and SPI flash memory (stacked die) to run program. Online software upgrade is also supported for LT6711A.
LT6711 is fabricated in advanced CMOS process and implemented in a small outline 5mmx5mm BGA81 (LT6711B) and 7.5mmx7.5mm QFN64 (LT6711A) package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
2. Features
• HDMI2.0 Receiver
• DP1.2 Transmitter
• Full-Featured USB Type-C
• USB Type-C Charging Port
• Miscellaneous

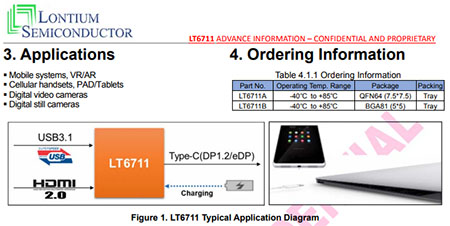

3. Applications
• Mobile systems, VR/AR
• Cellular handsets, PAD/Tablets
• Digital video cameras
LT6711A is a deeply-optimized HDMI re-driver IC that enhances TMDS signal quality by performing cable or board trace loss compensation. LT6711A can be configured to work under HDMI1.4b with up to 3.4Gb/s data rate or HDMI2.0 standard with maximum 6Gb/s data rate to allow for the highest resolutions of 4Kx2K 60Hz or 1080P with higher refresh rates.
The input receiver of LT6711A features a multi-level programmable linear equalizer that can support maximum 25dB loss compensation due to Inter-Symbol Interference (ISI). The output transmitter re-drives the received signal with multi-level programmable output swing and up to 6dB de-emphasis.
The Build-in DDC interception function, co-working with an accurate frequency detect on clock channel is also included to automatically setup re-driver parameters.
LT6711A internally integrates an 8-bit OCM and SPI flash memory (stacked die) to run program. Online software upgrade is also supported for LT6711A.
LT6711 is fabricated in advanced CMOS process and implemented in a small outline 5mmx5mm BGA81 (LT6711B) and 7.5mmx7.5mm QFN64 (LT6711A) package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
2. Features
• HDMI2.0 Receiver
• DP1.2 Transmitter
• Full-Featured USB Type-C
• USB Type-C Charging Port
• Miscellaneous
3. Applications
• Mobile systems, VR/AR
• Cellular handsets, PAD/Tablets
• Digital video cameras
• Digital still cameras
