LT9611UXC2Port MIPI/LVDSA转HDMI 转芯片模块解决方案，免费提供硬件开发文档
作者：网站管理员 来源：本站原创 日期：2021/3/23 15:10:34 点击：639 属于：行业动态
1. Deion

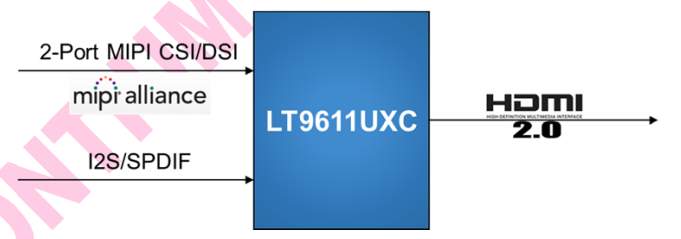

The LT9611UXC is a high performance MIPI DSI/CSI to HDMI2.0 converter for STB, DVD applications.
The MIPI DSI/CSI input features configurable single-portdual-port with 1 high-speed clock lane,1~4 high-speed data lanes operating at maximum 2Gbps/lane, which can support a total bandwidth of up to 16Gbps. LT9611UXC supports burst mode DSI video data transferring, also supports flexible video data mapping path. Integrated DSC decoder implements up to 1:3 visually lossless decompression which reduces bandwidth requirement for UHD video transport, also power consumptionEMI.
The HDMI2.0 output supports data rate up to 6Gbps which provides sufficient bandwidth for 4k@60Hz video. Also HDCP2.2 is supported for data encryption.
Two digital audio input interfaces are available, I2SSPDIF. The I2S interface supports 2-ch LPCMthe SPDIF interface supports 2-ch LPCMcompressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.
2. Features
• Single/Dual-Port MIPI DSI/CSI Receiver
• Digital Audio Input
• HDMI2.0 Transmitter
• Miscellaneous
3. Applications
• STB
• DVD/BD
• PTV Box
如需获取更多产品资料PDF,电路图或样品，技术疑问（原厂技术支持）欢迎随时与我们取得联系！！
深圳市九黎科技有限公司：www.jlkj688.com
联系电话：0755-26980129/18771735437(微信同号)
联系人：郑小姐 传真：0755-82737072 QQ:313620595
邮箱：cjzheng.jl@foxmail.com
